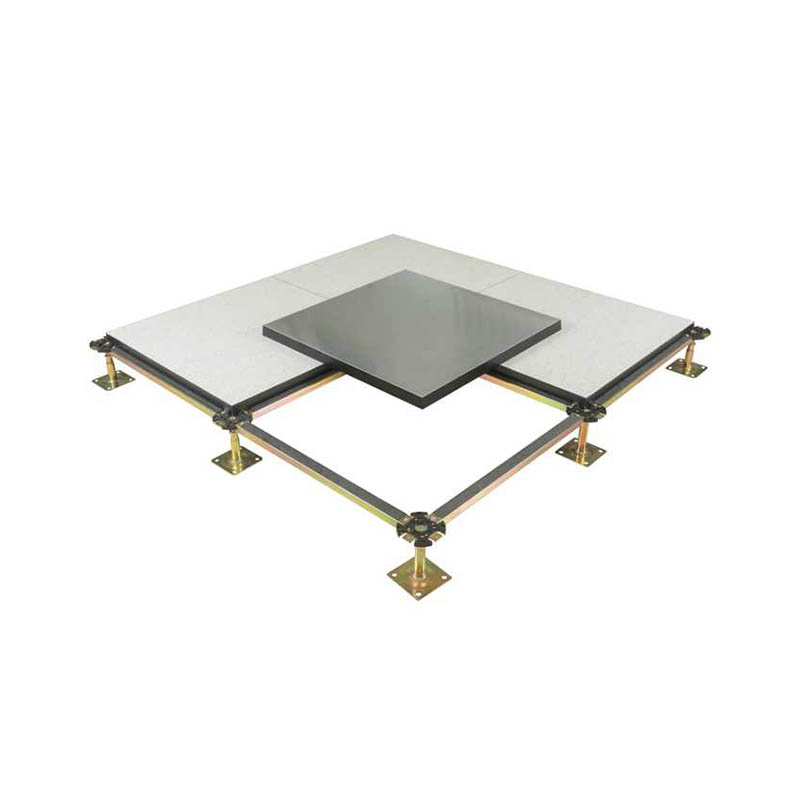

Anti-staic Calcium Sulphate Raised Access Floor

Anti-staic Calcium Sulphate Raised Access Floor

600*600mm
Abeite Calcium Sulphate Raised Floor stands out in the market as a top-tier product, crafted from 100% eco-friendly natural gypsum powder. This commitment to green practices extends through every stage of its lifecycle, from material selection and procurement to production and packaging, ensuring compliance with stringent standards such as the Chinese and PSA MOB PS/SPU, as well as DIN EN 12825 specifications.

Consult

Features
Technical Indicators
Overall Dimension

Abeite Calcium Sulphate Raised Floor stands out in the market as a top-tier product, crafted from 100% eco-friendly natural gypsum powder. This commitment to green practices extends through every stage of its lifecycle, from material selection and procurement to production and packaging, ensuring compliance with stringent standards such as the Chinese and PSA MOB PS/SPU, as well as DIN EN 12825 specifications. Aiming to match the high-quality benchmarks set by renowned German brands like Mero and Lindner, Abeite has invested in advanced German HOMAG and Italian SCM machinery for automated production. This strategic approach enables us to offer our customers products of unparalleled quality, reflecting our dedication to excellence and environmental responsibility.

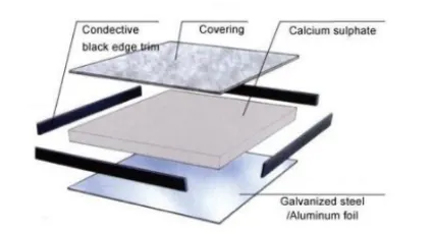

Construction：
Calcium Sulphate Raised Floor is based on a high-density calcium panel, top finished with HPL/PVC/Ceramic and other coverings, galvanized steel sheet or aluminum foil to bottom, the four edges are wrapped with conductive black PVC trims (Other colors can also be customized).
Customize Your Floor：

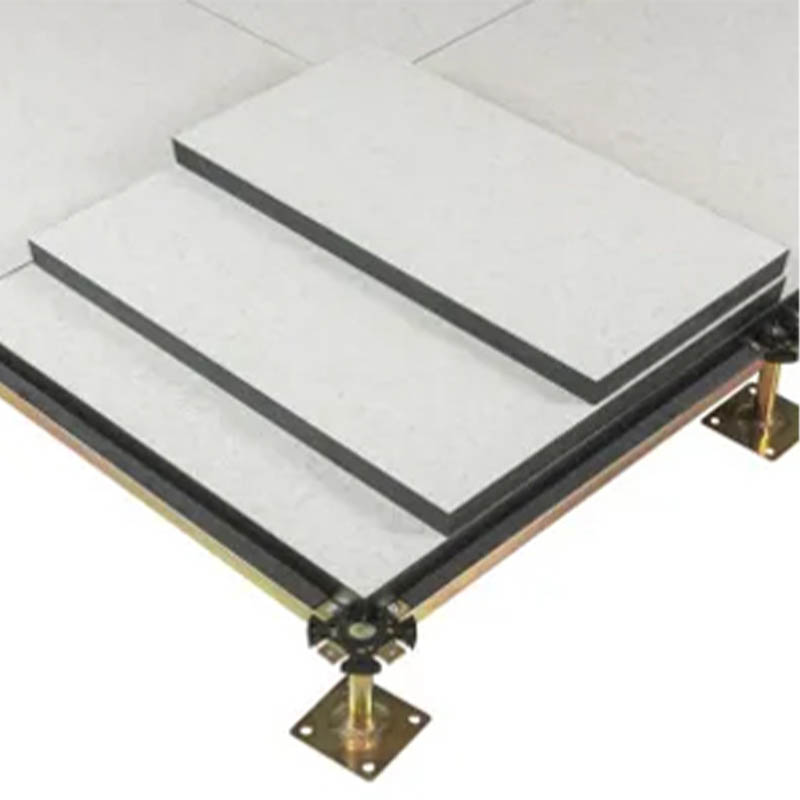

Installation Type

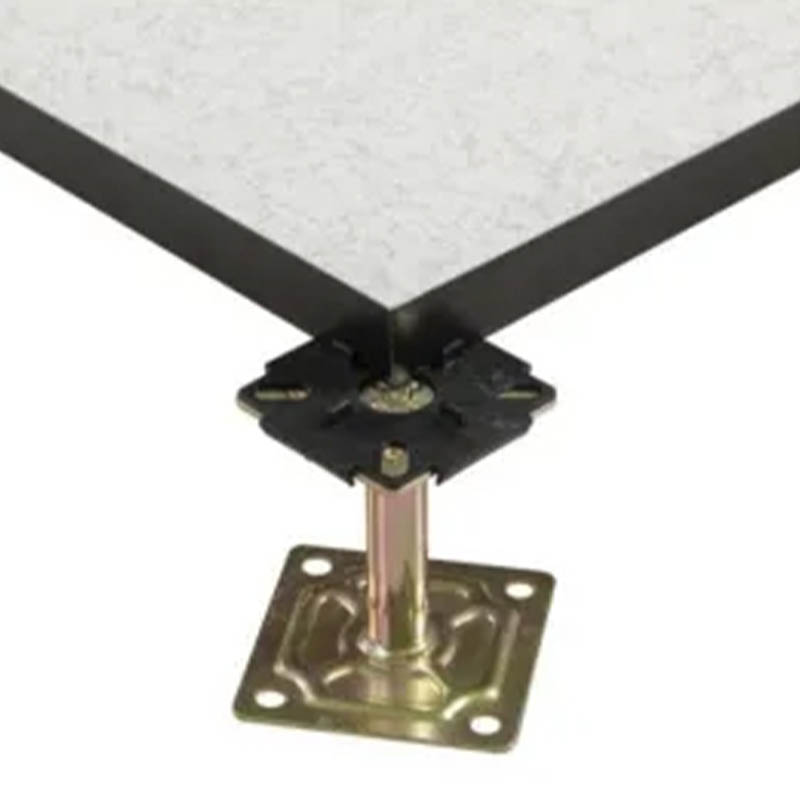

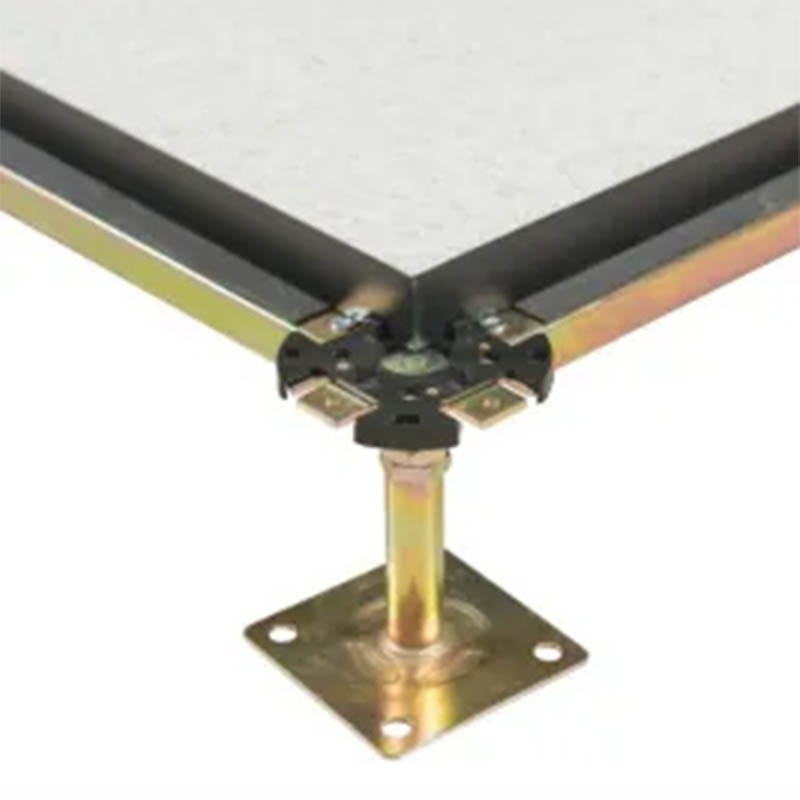

▎With Stringer System

▎Without Stringer System

Customized Size
Such as 500*500mm/600*300mm, and other special sizes of project needs.

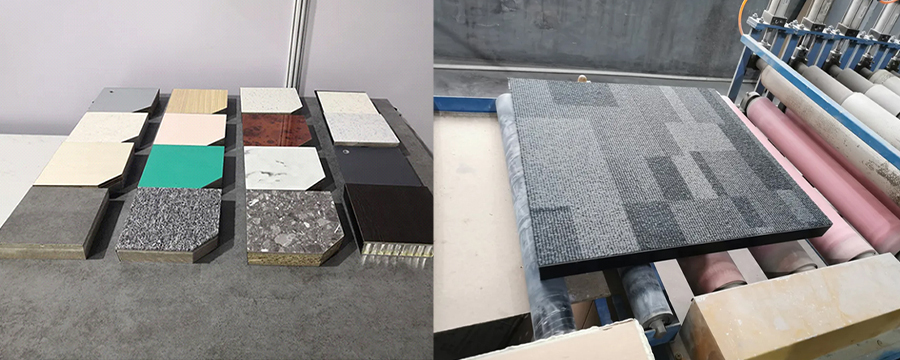

Customized Covering

Different Bottom Edge Trim

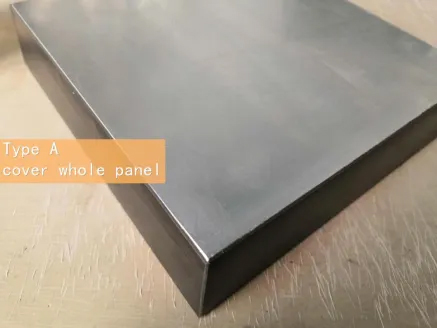

Type A: Without chamfer on the back of the floor

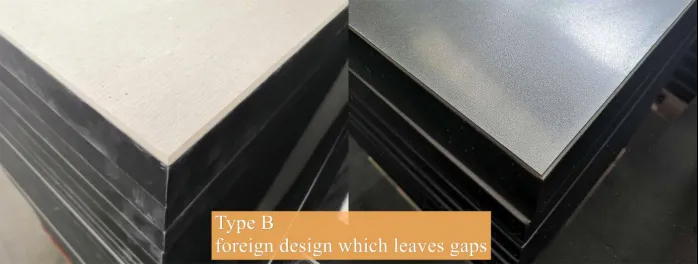

Type B: With chamfer on the back of the floor

Characteristics：
● Non-toxic natural product, 100% green environmental protection natural gypsum power
● 90%-97%recycled can meet the requirement of LEED evaluation for projects
● Tolerance of panel size is ≤0.10mm, Tolerance of panel thickness is ±0.10mm, Un-flatness is ≤0.05mm
● Diagonal tolerance±0.1mm,Deflection≤0.2mm
● Imported Polyurethane Reactive hot-melt adhesive Anti-aging and high temperature
● The load performance is strong, and the anti-static performance is excellent.
● Good performance to Moisture resistance、Anti-corrosion、Class A1 Fire resistance(baseboard)
● OEM is available
● We can customize different kinds of raised floor samples if you need them
Applications：

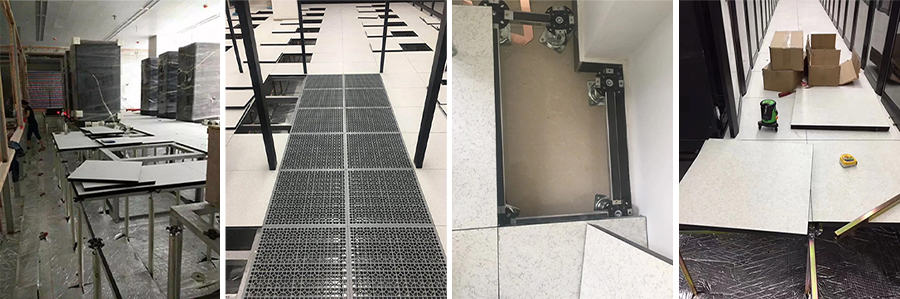

Calcium Sulphate Raised Floor is widely in Data Centers, Commercial Buildings, Educational Facilities, Clean Rooms, Control Rooms, Libraries, and places that require an anti-static environment or have many wires.

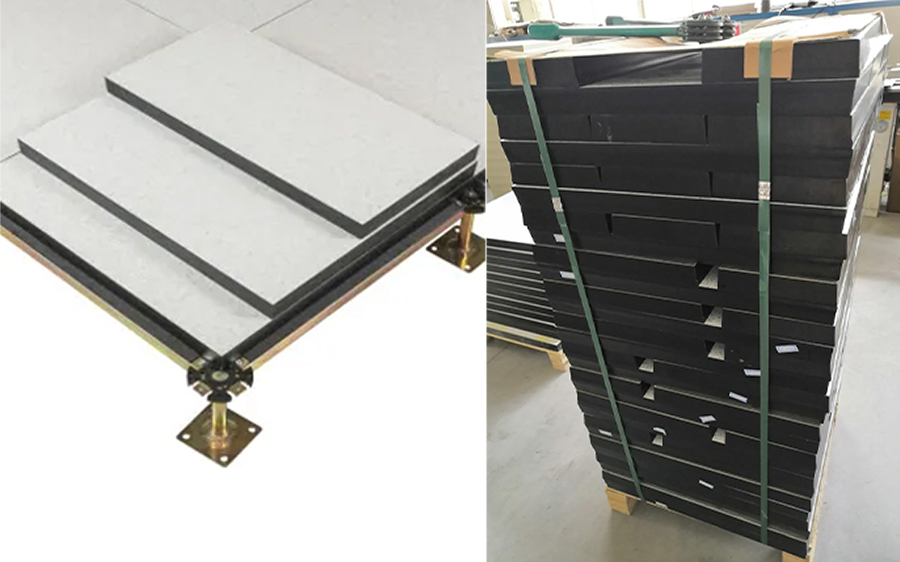

Package & Delivery：
The normal package is a paper box, but wooden box or other kinds are also optional.

Wood box is optional.
Finished Floor Height:
100-2000mm
Density:
1500-1700 kg/m³
Panel Size:
500*500mm、600*600mm and special size
Core Panel Thickness:
22-38mm

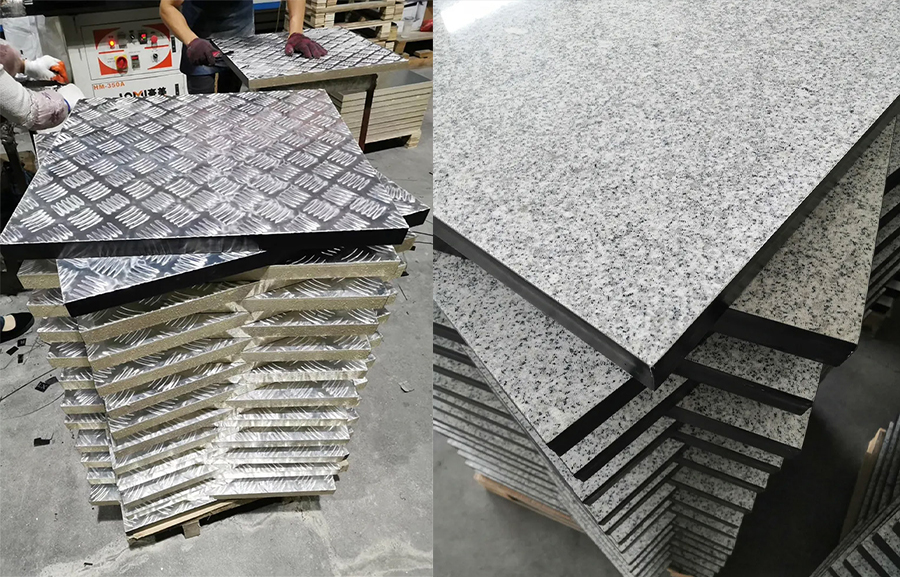

Upper Covering:
Bare, 1.0-2.0mm Anti-static Laminate HPL, 2.0-3.0mm PVC, 10mm Cermic, Marble, Granite, Nature Wood, and etc.
Under Covering:
Bare, 0.3-2.0mm Galvanized steel, 0.1-2.0mm Aluminum Foil
Installation:
Without or With Stringer System

Type
Load Level
Size
Concentrated Load Defleation≤2.5mm
Uniform Load
Ultimate Load
System Resistance
mm
LBS
KN
KN/㎡
KN
Ω
FS800
Medium Grade
600*600 (500*500 and more size is optional)
800
3.56
16
10.68
1.0x106-1.0x109
FS1000
Heavy Grade
1000
4.45
23
13.35
FS1250
Extra Heavy Grade
1250
5.56
33
16.68
FS1500
Industrial Grade
1500
6.67
43
20.02

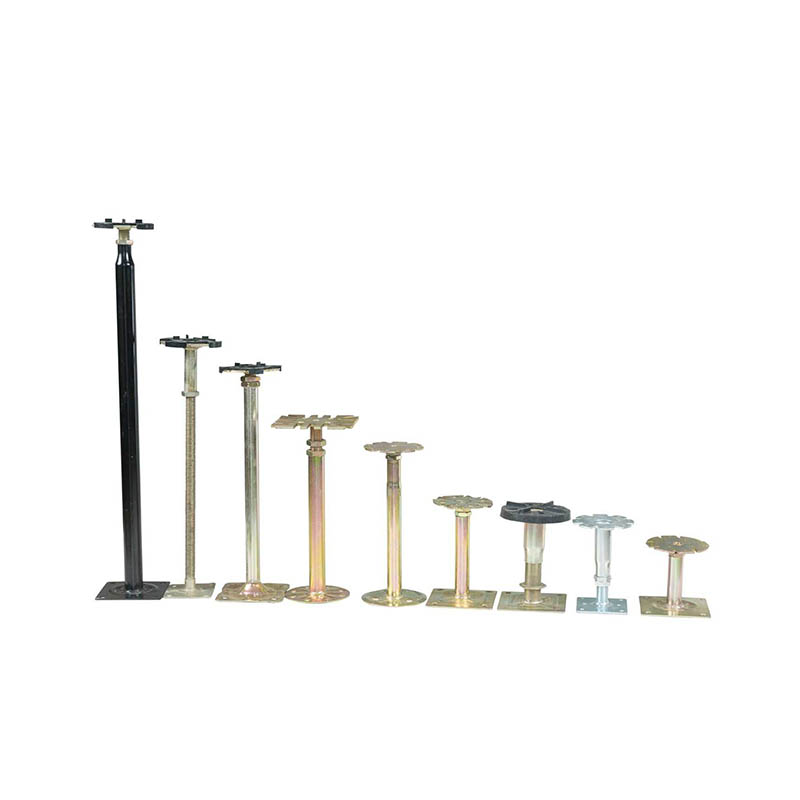

Understructures:

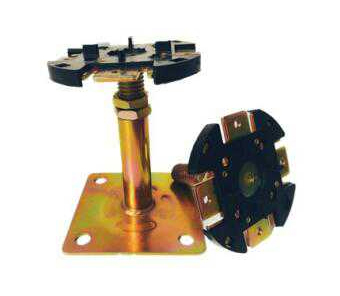

Product Name:
Round Head Pedestal

Suggested Height:
FFH100-600mm
Tube:
22*1.5mm
Top Plate:
90*90*3.0mm
Base Plate:
95*95*2.0mm
Threaded Rod:
M18/20/22
Threaded Rod Length:
80mm/100mm and more
Surface:
Cold galvanizing
Hot galvanizing
Powder coated
Gasket:
With

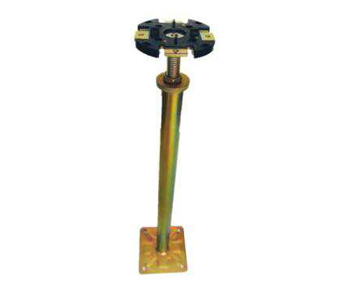

Product Name:
Heavy-duty pedestal

Suggested Height:
FFH600-2000mm
Tube:
Φ32/1.5mm
Top Plate:
90*90*3.0mm
Base Plate:
95*95*3.0mm
Threaded Rod:
M18
Threaded Rod Length:
80mm/100mm and more
Surface:
Cold galvanizing
Hot galvanizing
Powder coated
Gasket:
With

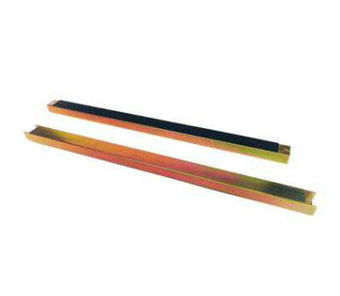

Product Name:
Stringer

Size:
540*31*22mm
1140*31*22mm
Steel thickness:
1.0/1.2mm
Surface:
Cold galvanizing
Hot galvanizing
Powder coated
Gasket:
With

Finished Floor Height:	100-2000mm
Density:	1500-1700 kg/m³
Panel Size:	500500mm、600600mm and special size
Core Panel Thickness:	22-38mm
Upper Covering:	Bare, 1.0-2.0mm Anti-static Laminate HPL, 2.0-3.0mm PVC, 10mm Cermic, Marble, Granite, Nature Wood, and etc.
Under Covering:	Bare, 0.3-2.0mm Galvanized steel, 0.1-2.0mm Aluminum Foil
Installation:	Without or With Stringer System

Type	Load Level	Size	Concentrated Load Defleation≤2.5mm		Uniform Load	Ultimate Load	System Resistance
Type	Load Level	mm	LBS	KN	KN/㎡	KN	Ω
FS800	Medium Grade	600600 (500500 and more size is optional)	800	3.56	16	10.68	1.0x106-1.0x109
FS1000	Heavy Grade		1000	4.45	23	13.35
FS1250	Extra Heavy Grade		1250	5.56	33	16.68
FS1500	Industrial Grade		1500	6.67	43	20.02

Product Name:	Round Head Pedestal
Suggested Height:	FFH100-600mm
Tube:	22*1.5mm
Top Plate:	90903.0mm
Base Plate:	95952.0mm
Threaded Rod:	M18/20/22
Threaded Rod Length:	80mm/100mm and more
Surface:	Cold galvanizing Hot galvanizing Powder coated
Gasket:	With

Product Name:	Heavy-duty pedestal
Suggested Height:	FFH600-2000mm
Tube:	Φ32/1.5mm
Top Plate:	90903.0mm
Base Plate:	95953.0mm
Threaded Rod:	M18
Threaded Rod Length:	80mm/100mm and more
Surface:	Cold galvanizing Hot galvanizing Powder coated
Gasket:	With

Product Name:	Stringer
Size:	5403122mm 11403122mm
Steel thickness:	1.0/1.2mm
Surface:	Cold galvanizing Hot galvanizing Powder coated
Gasket:	With
