Anti-staic Wood Core Raised Access Floor
Anti-staic Wood Core Raised Access Floor
Anti-staic Wood Core Raised Access Floor
Anti-staic Wood Core Raised Access Floor
Anti-staic Wood Core Raised Access Floor
Anti-staic Wood Core Raised Access Floor

Anti-staic Wood Core Raised Access Floor

600*600mm
Abeite Wood Core Raised Access Floor is a hot selling product of Abeite, it’s made by high-density chipboard core. From the selection of materials, procurement, production, packaging, all following the PSA MOB PS/SPU, DIN EN 12825 specifications.
Abeite Wood Core Raised Access Floor is a hot selling product of Abeite, it’s made by high-density chipboard core. From the selection of materials, procurement, production, packaging, all following the PSA MOB PS/SPU, DIN EN 12825 specifications.
Construction：

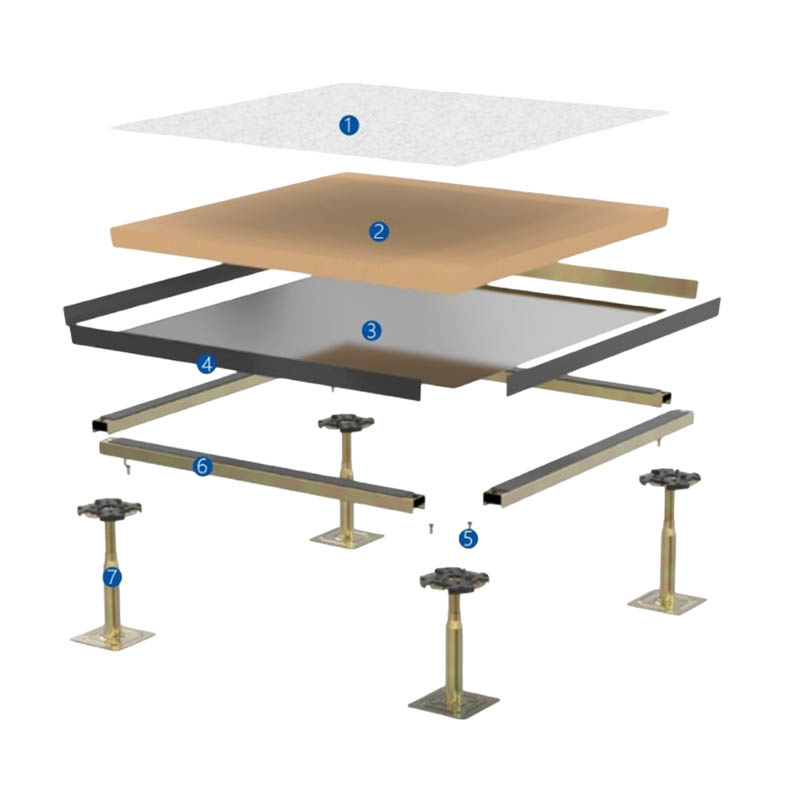

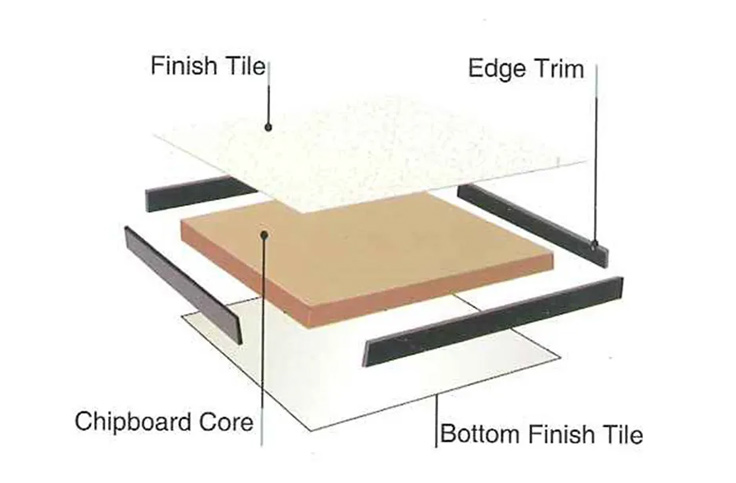

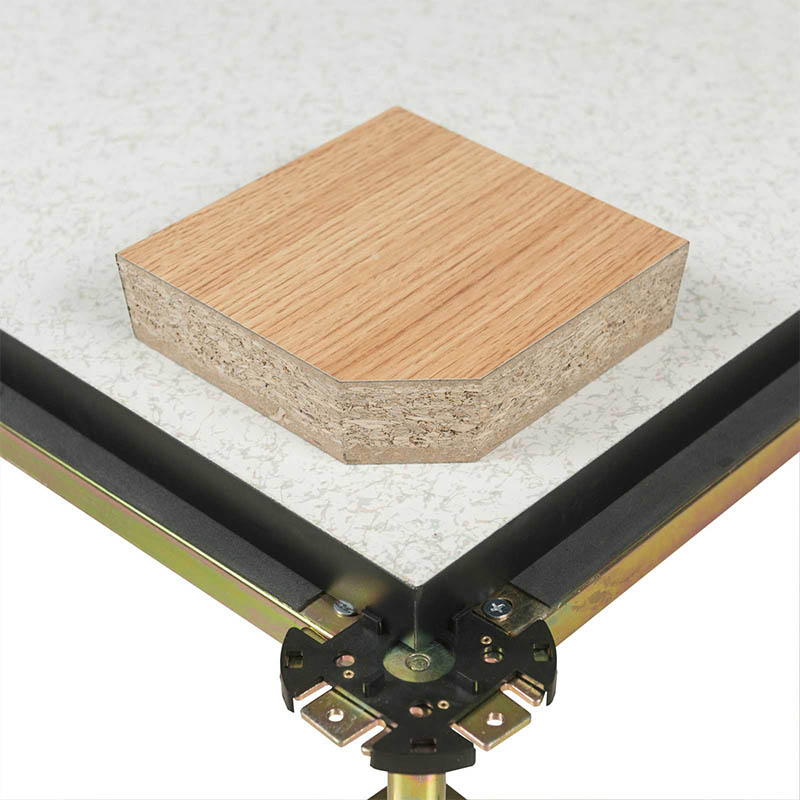

Wood core raised access floor is based on a high-density chipboard panel, finished with HPL/PVC/Ceramic and other coverings, galvanized steel sheet or aluminum foil to bottom, the four edges are wrapped with conductive PVC trims.

Customize Your Floor：
Installation Type

With Stringer System







Without Stringer SystemWith Stringer System



Customized Size
Such as 500*500mm/600*300mm, and other special sizes of project needs.

Customized Covering

Characteristics：
● Tolerance of panel size is ≤40mm, Tolerance of panel thickness is ±0.30mm, Un-flatness is ≤0.60mm
● Diagonal tolerance≤05mm,Deflection＞0.5mm
● Lightweight is mainly used in the area where the self-load requirement is specified less
● Good walking comfort and quiet.
● Imported Polyurethane Reactive hot-melt adhesive Anti-aging and high temperature
● Good performance to Moisture resistance、Class B2 Fire resistance (baseboard)
● OEM is available
● We can customize different kinds of raised floor samples if you need
Applications：
Wood core raised floor is widely in Data Centers, Commercial Buildings, Educational Facilities,Clean Rooms, Control Rooms, Libraries, and places that require anti-static environment or havemany wires.

Package & Delivery：
Fast & Safe Shipping
Our raised floors are securely packaged to ensure protection during transportation. With flexible delivery options, we can accommodate orders of any size and deliver within your project timeline, ensuring your raised floor system arrives on time and undamaged.
The normal package is a paper box, but wooden box or other kinds are also optional.

Wood box is optional.

Why Choose Our Product?
Eco-Friendly Materials: Made from high-density chipboard and A-grade galvanized steel, providing an environmentally sustainable solution.
Customization: Panels are available in various sizes and heights to meet your project’s unique specifications.
Durability: Designed for high load capacity and impact resistance, perfect for high-traffic and demanding environments.
Fire Safety: Certified as incombustible with excellent flame retardant properties.
Noise & Heat Insulation: Provides excellent soundproofing and thermal insulation, making it ideal for noise-sensitive environments.
Choosing the Abeite Encapsulated Wood Core Raised Floor ensures you get a high-quality, safe, and durable flooring solution that meets the needs of modern commercial and industrial spaces.
FAQ
▼ Q: What is the core material of the raised floor panels?
A: The panels are made from high-density chipboard, providing a durable yet lightweight core that is ideal for raised flooring systems.
▼ Q: What is the maximum adjustable height of the raised floor?
A: The floor height can be adjusted from 70mm to 1500mm, providing flexibility for various installation requirements.
▼ Q: Can I choose my preferred installation method?
A: Yes, you can choose between corner lock or bolted stringer installation options, depending on your specific needs.
▼ Q: Where can this raised floor system be used?
A: This system is perfect for data centers, commercial buildings, educational facilities, clean rooms, and areas requiring anti-static or extensive cabling solutions.
▼ Q: Is the raised floor fire-resistant?
A: Yes, the raised floor panels are incombustible, with a Flame Spread rating of 0 and Smoke Density of 0 (ASTM E84-01).

Reliable and High-Quality Raised Floor

Finished Floor Height:

100-2000mm

Density:

680 kg/m³

Panel Size:

500*500mm / 600*600mm / 800*800mm and special size

Core Panel Thickness:

30mm / 38mm(16-38mm can be customized according to project needs)

Upper Covering:

1.0-2.0mm Anti-static Laminate HPL, 2.0-3.0mm
PVC,10mm Ceramic, Marble, Granite, Nature Wood and etc

Under Covering:

Bare, 0.3-2.0mm Galvanized steel, 0.1-2.0mm
Aluminum Foil

Installation:

Without or With Stringer System



Type

Load Level

Size

Concertrated Load

Defleation≤2.5mm

Uniform Load

Ultimate Load

System Resistance

mm

LBS

KN

KN/㎡

KN

Ω

FS800

Medium Grade

600*600 (500*500 is optional)

800

3.56

16

10.68

1.0x106-1.0x109

FS1000

Heavy Grade

1000

4.45

23

13.35

FS1250

Extra Heavy Grade

1250

5.56

33

16.68

FS1500

Industrial Grade

1500

6.67

43

20.02

Understructures:

Product Name:

Round Head Pedestal



Suggested Height:

FFH100-600mm

Tube:

Φ22*1.5mm

Top Plate:

90*90*3.0mm

Base Plate:

95*95*2.0mm

Threaded Rod:

M18/20/22

Threaded Rod Length:

80mm/100mm and more

Surface:

Cold galvanizing

Hot galvanizing

Powder coated

Gasket:

With



Product Name:

Heavy-duty pedestal



Suggested Height:

FFH600-2000mm

Tube:

Φ32/1.5mm

Top Plate:

90*90*3.0mm

Base Plate:

95*95*3.0mm

Threaded Rod:

M18

Threaded Rod Length:

80mm/100mm and more

Surface:

Cold galvanizing

Hot galvanizing

Powder coated

Gasket:

With



Product Name:

Stringer



Size:

540*31*22mm

1140*31*22mm

Steel thickness:

1.0/1.2mm

Surface:

Cold galvanizing

Hot galvanizing

Powder coated

Gasket:

With

×
